Click on screen to view a sample of the full gallery of VBDP Screens    [click to return to VBDP Features]
click to view Gallery Image Here's what you'll see...

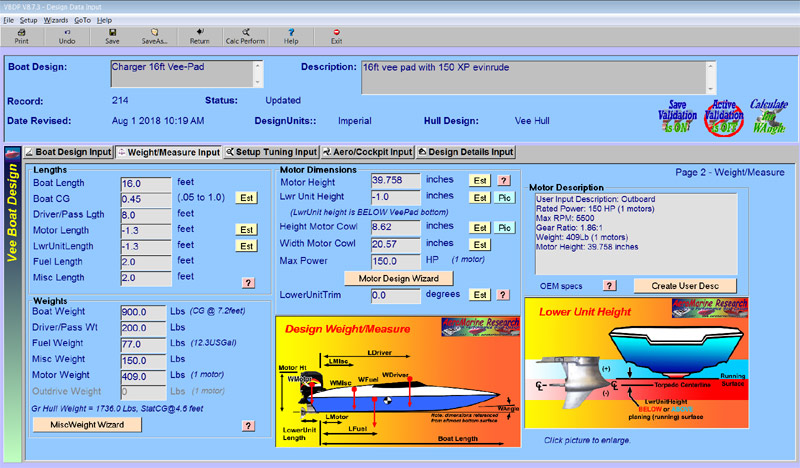

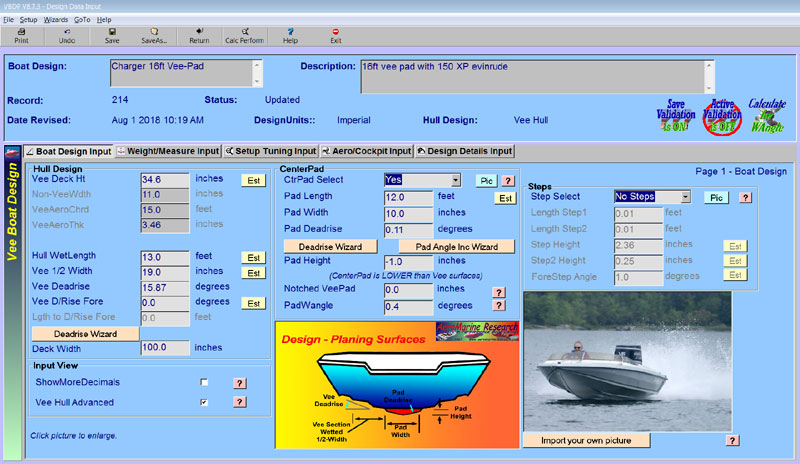

  1. Input screen#1 (of 4) - detailed design information input controls

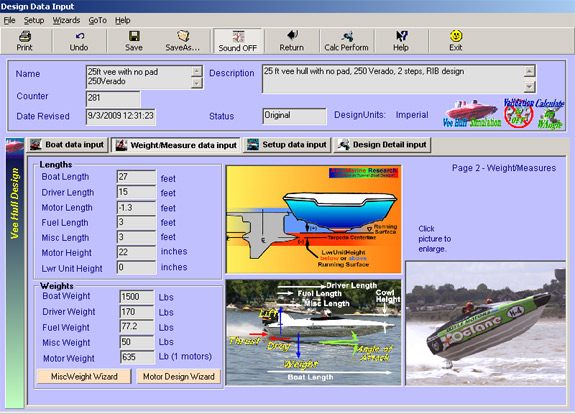

  2. Input screen#2 (of 4)

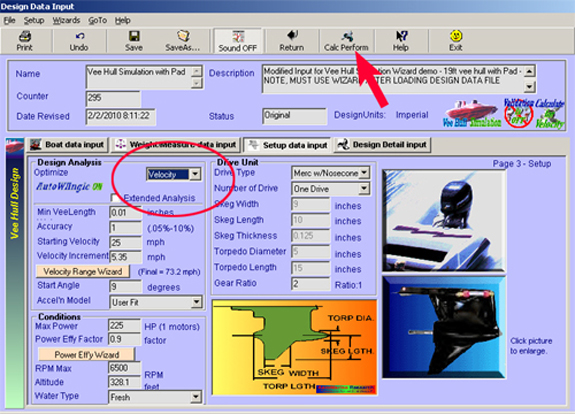

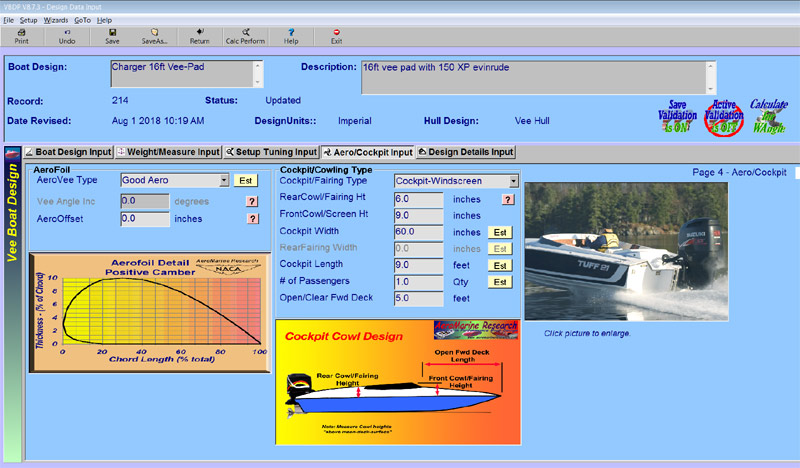

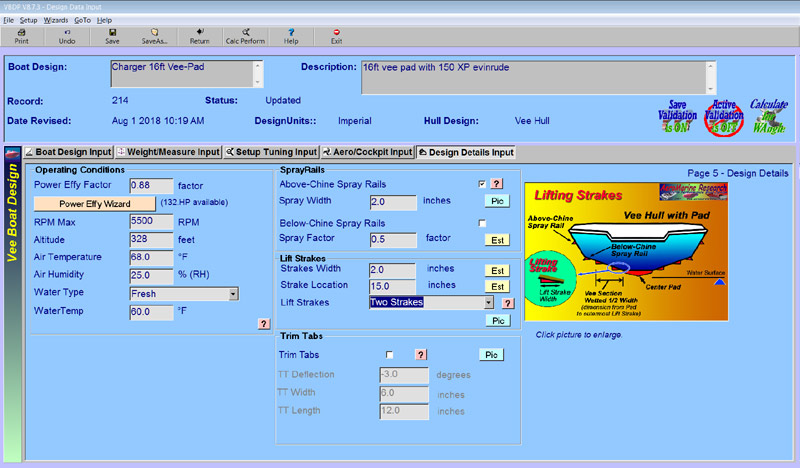

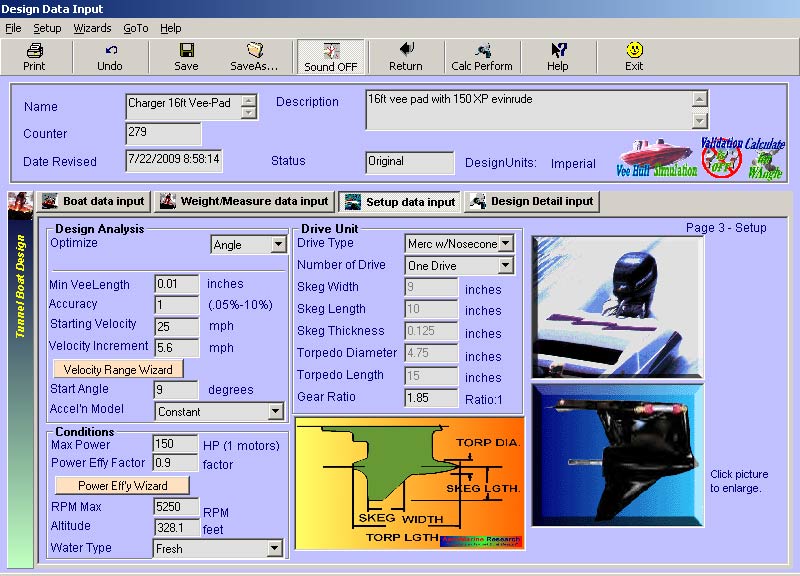

  3. Input screen#3 (of 4)

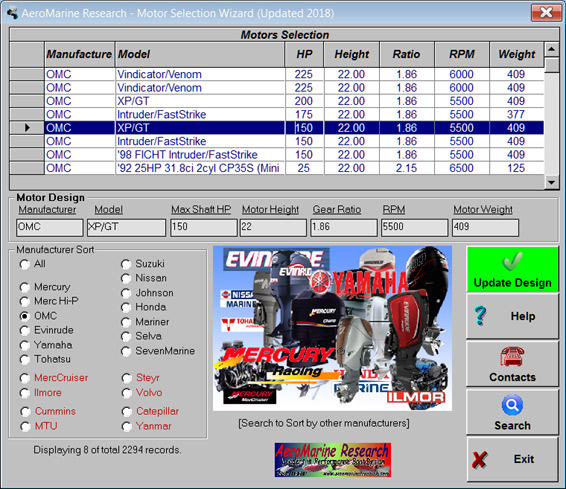

  4. Motor Selection Wizard - select from over 1750 OEM engine specs

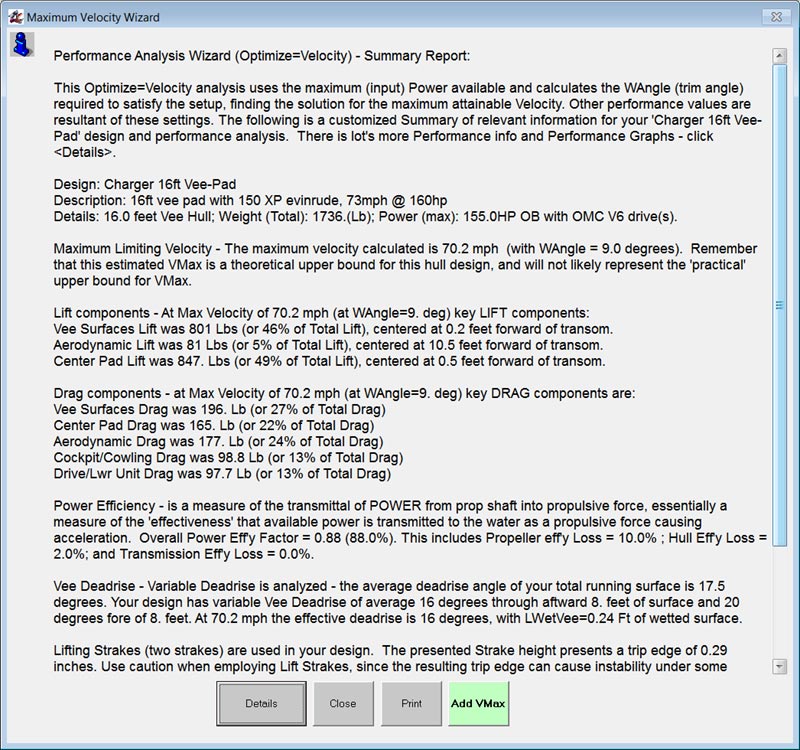

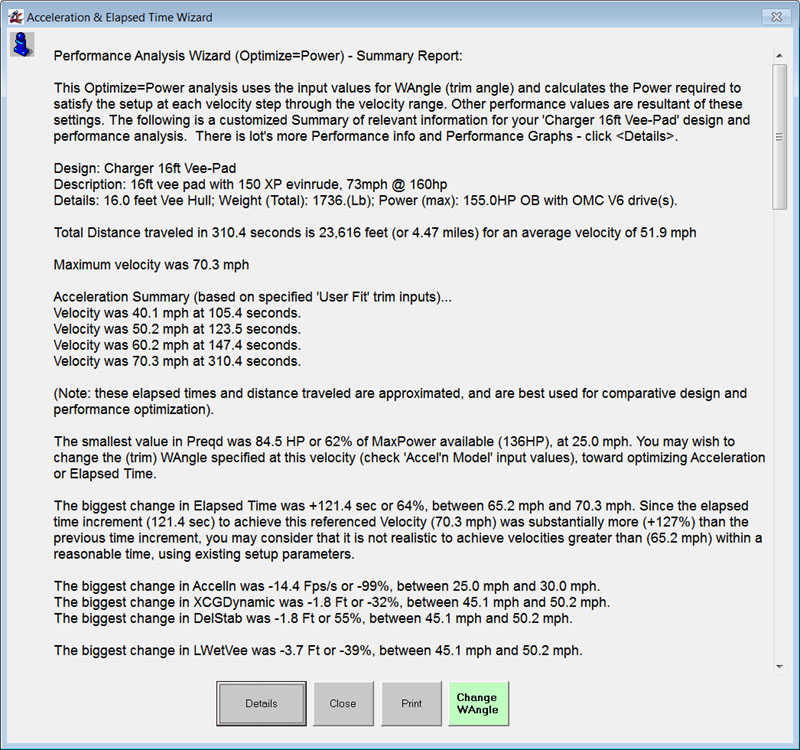

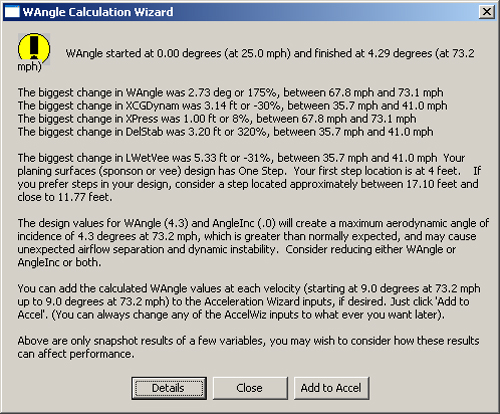

  5. Quick performance summary - notes of data alerts and key performance indicators

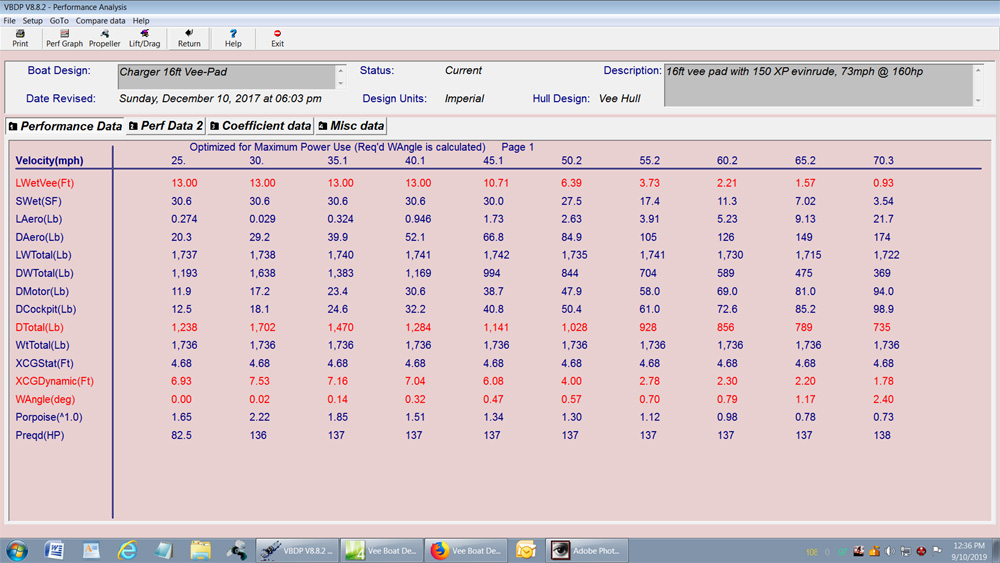

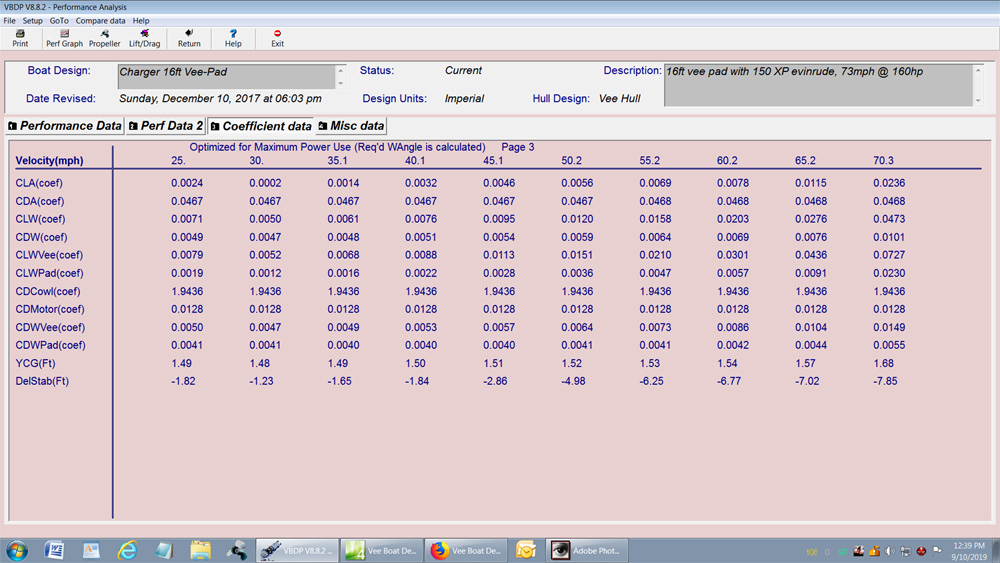

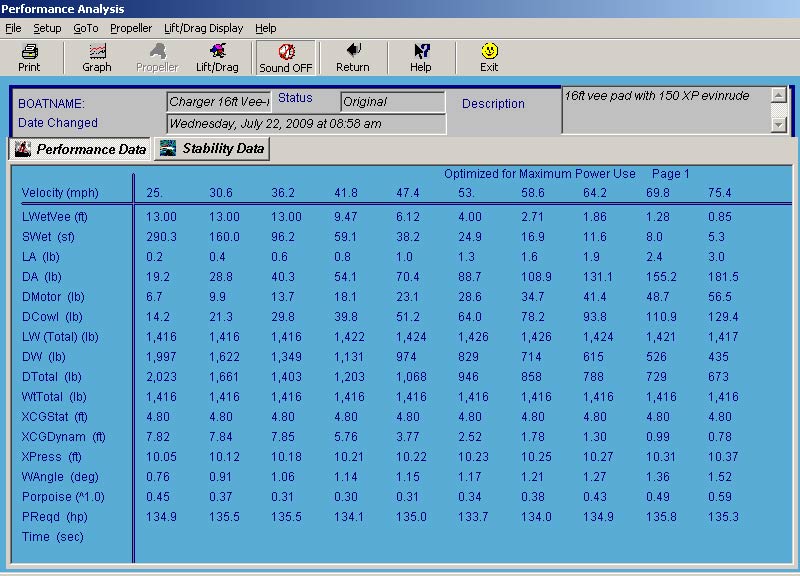

  6. Vee Performance analysis (screen#1 of 3) - over 50 performance related indicators

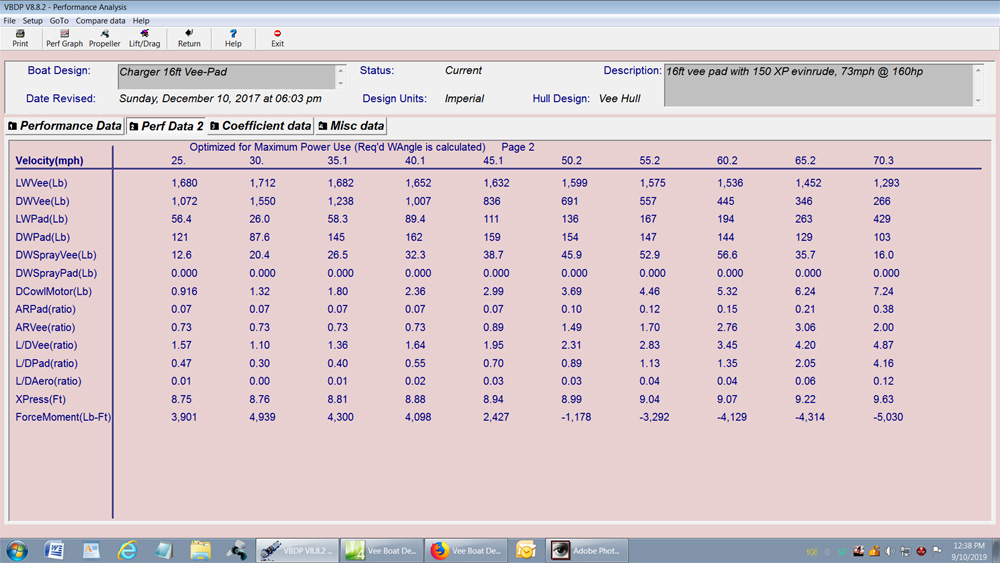

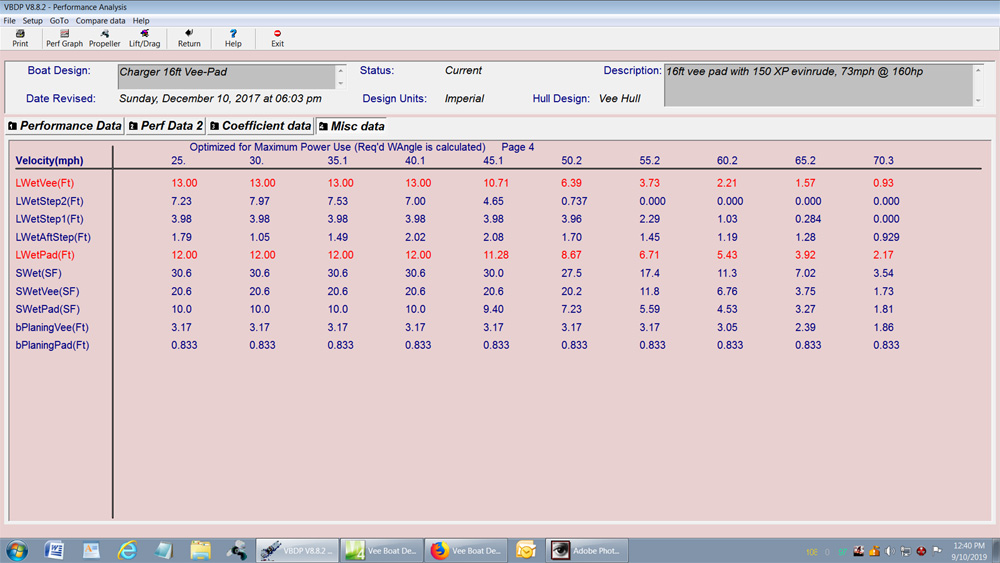

  7. Vee Performance analysis (screen#2 of 3) - over 50 performance related indicators
  8. Vee Performance Graph#7 (of 45) - Dynamic Stability vs. velocity

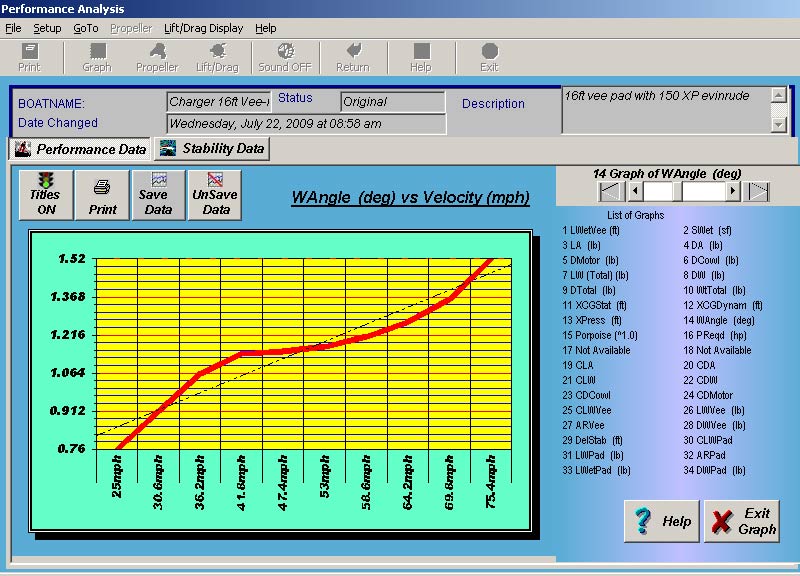

  9. Vee Performance Graph#9 - Trim Angle

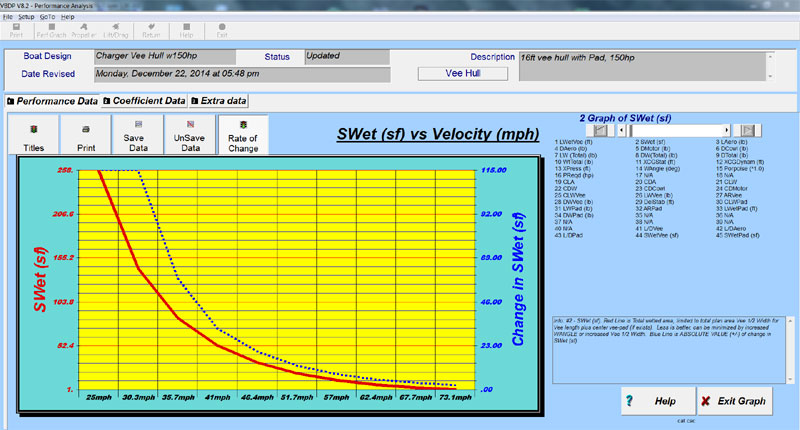

  10. Vee Performance Graph#2 - Wetted Surface area
  11. Vee Performance Graph#1 - Wetted Length

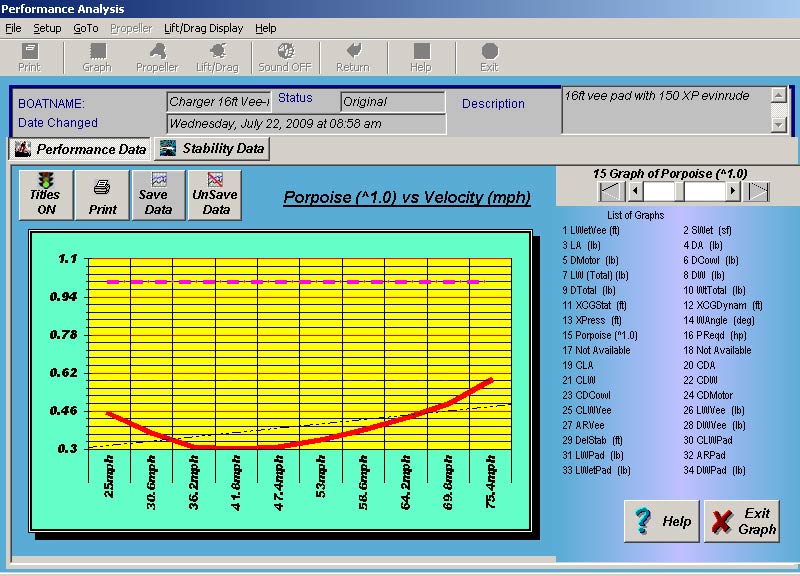

  12. Vee Performance Graph#16 - Porpoise Analysis

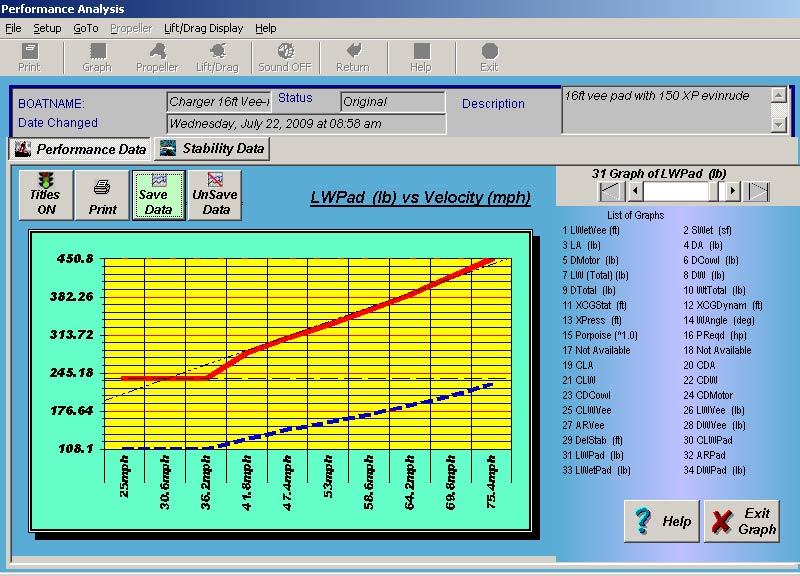

  13. Vee Performance Design Alternative Comparison Graph#24 (of 45) - review complete performance changes by comparing your base design to a modified design of any kind.

    [There's lot's more screens, reports and performance analysis information, but here's a quick sample of what to expect]

VBDP Design Input Screens

(VBDP is now a part of the TBDP software package)
