1. Quickly create a design by selecting one of the 'standard' tunnel or vee hull design templates, for a quick & easy start to your design,
2. Customize your design by specifying a few overall descriptions, and then QuickDesign Wizard automatically defines ALL of the other design dimensions and inputs for you.
Just start with a hull type (template), to get most of the hull style features, then fine tune using the 'wizard'.
We've included several 'standard' hull templates that you can use to get started, if desired. These templates make for an easy starting point, by defining just a few descriptive inputs for your hull design, and then the QuickDesign Wizard completes adjusted inputs for all inputs required for full performance analysis. (You don't have to use any of these, but it's an easy place to 'kick-start' your design configuration).
Quickly create a design by selecting one of the 'standard' tunnel or vee hull design configurations, then define only a few dimensions if you know them.
(OR input your own design easily, from scratch)

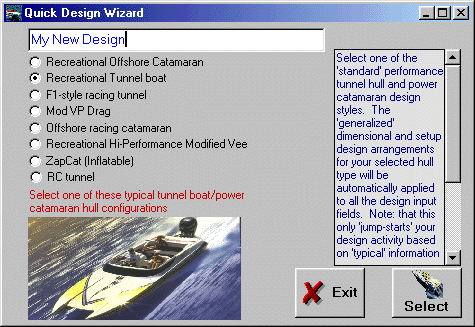

The “Quick Design Wizard“ makes it easy to define the general features of your hull design by using one of these complete standard designs and modifying a few of the key influencing parameters.
By providing only a few overall descriptions of your design, the Wizard will define ALL of the design dimensions and inputs for you. The 'generalized' dimensional and setup design arrangements for your selected hull type will be automatically applied to all the design input fields, making 'typical' adjustments based on your definition.
Choose from 'standard' design templates:
•Recreationanl Offshore Catamaran
•Recreational Tunnel boat
•F1 Style racing tunnel
•Mod VP Drag tunnel
•Offshore Racing Catamaran
•Recreational High Perf Modified Vee
•Offshore Fishing/Utility
•Vee Hull with Pad
•Vee Hull with No Pad
•ZapCat (lnflatable)
•RC Tunnel
•RC Vee Sterndrive
•Vee Hull Sterndrive
•Bass Boat w/center console
•RIB Vee Outboard
•Skater 24 catamaran
•Vee Hull Utility Bay
•Fishing Vee with Cuddy Cabin
•Bowrider sterndrive
•Flat Bottom Skiff

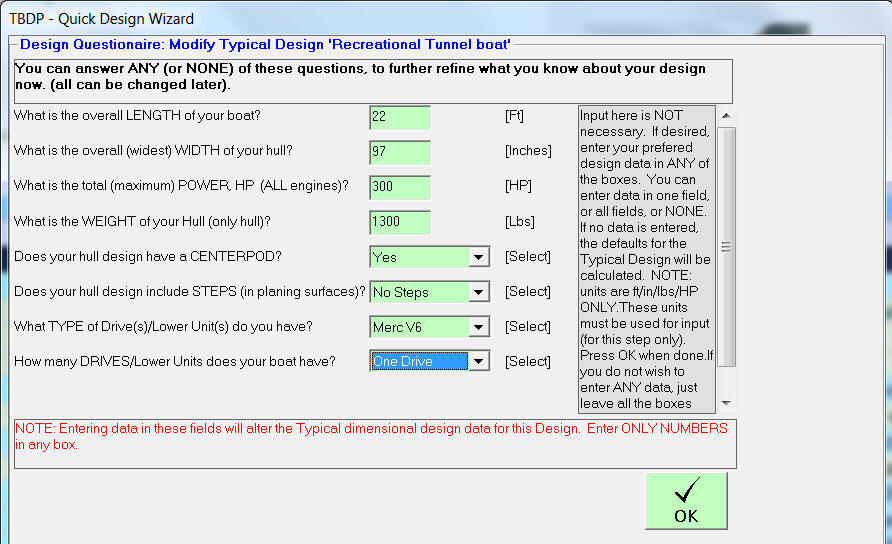

You can define a few of the key sizing features of your own design in the modification screen. The 'generalized' dimensional and setup design arrangements for your selected hull type will be automatically adjusted and applied to all the key related design input fields for your hull.
OR input your own design from scratch - of course, you can change and optimize each one of the many input dimensions and setup parameters on the 5 input screens, to optimize the design, setup and performance analysis of your boat.

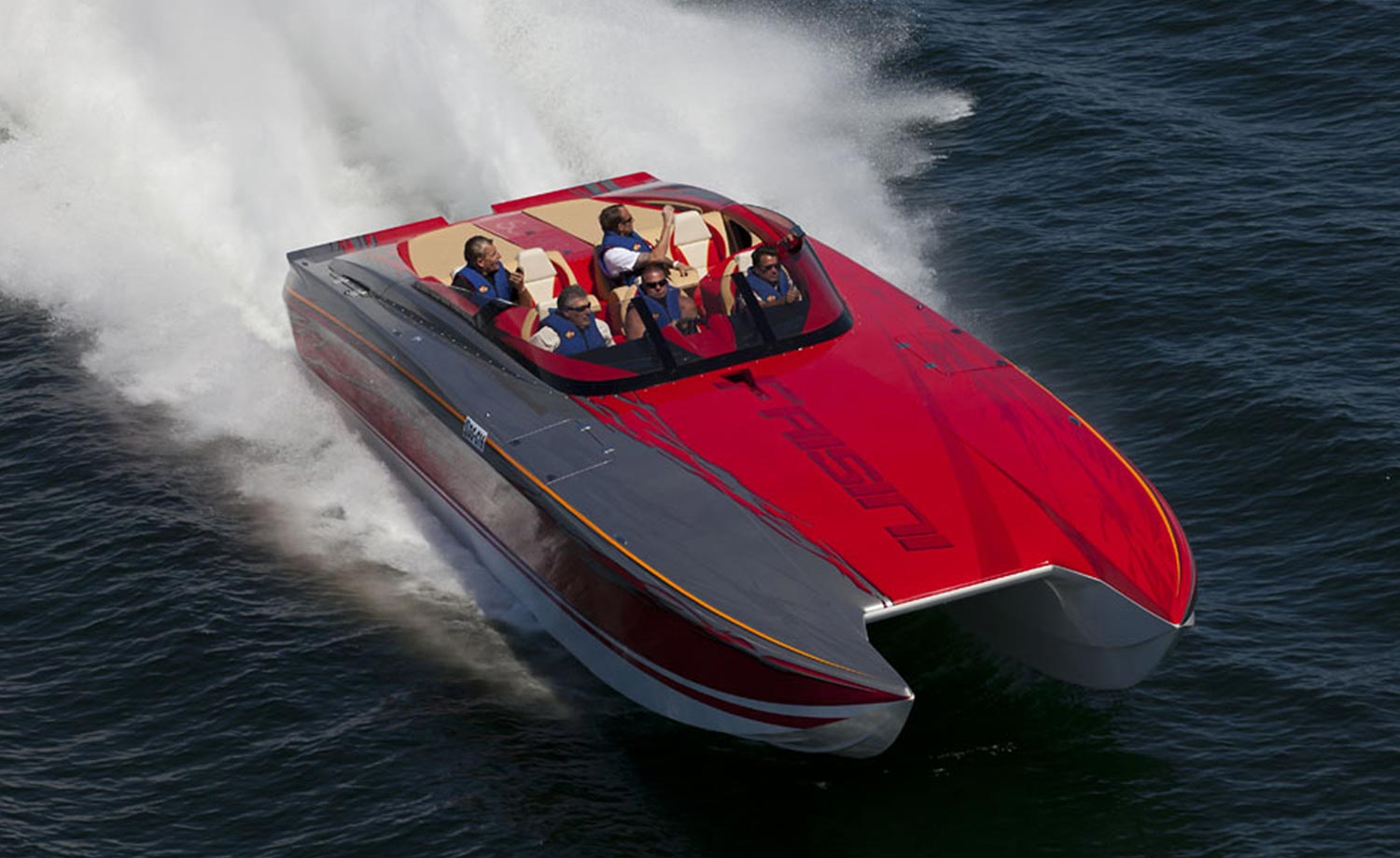

 Recreational Offshore Catamaran |

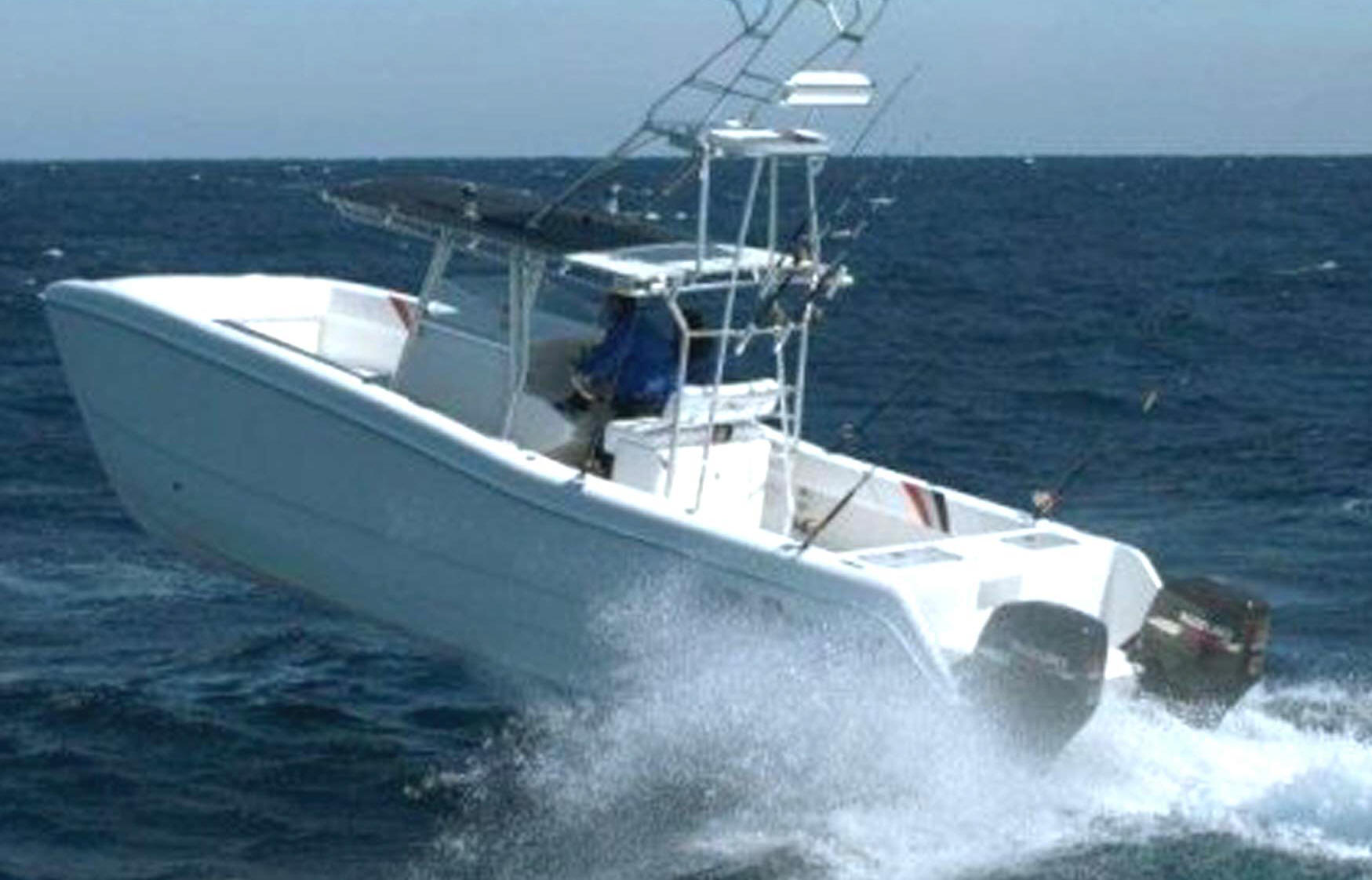

 Offshore Fishing Utility |

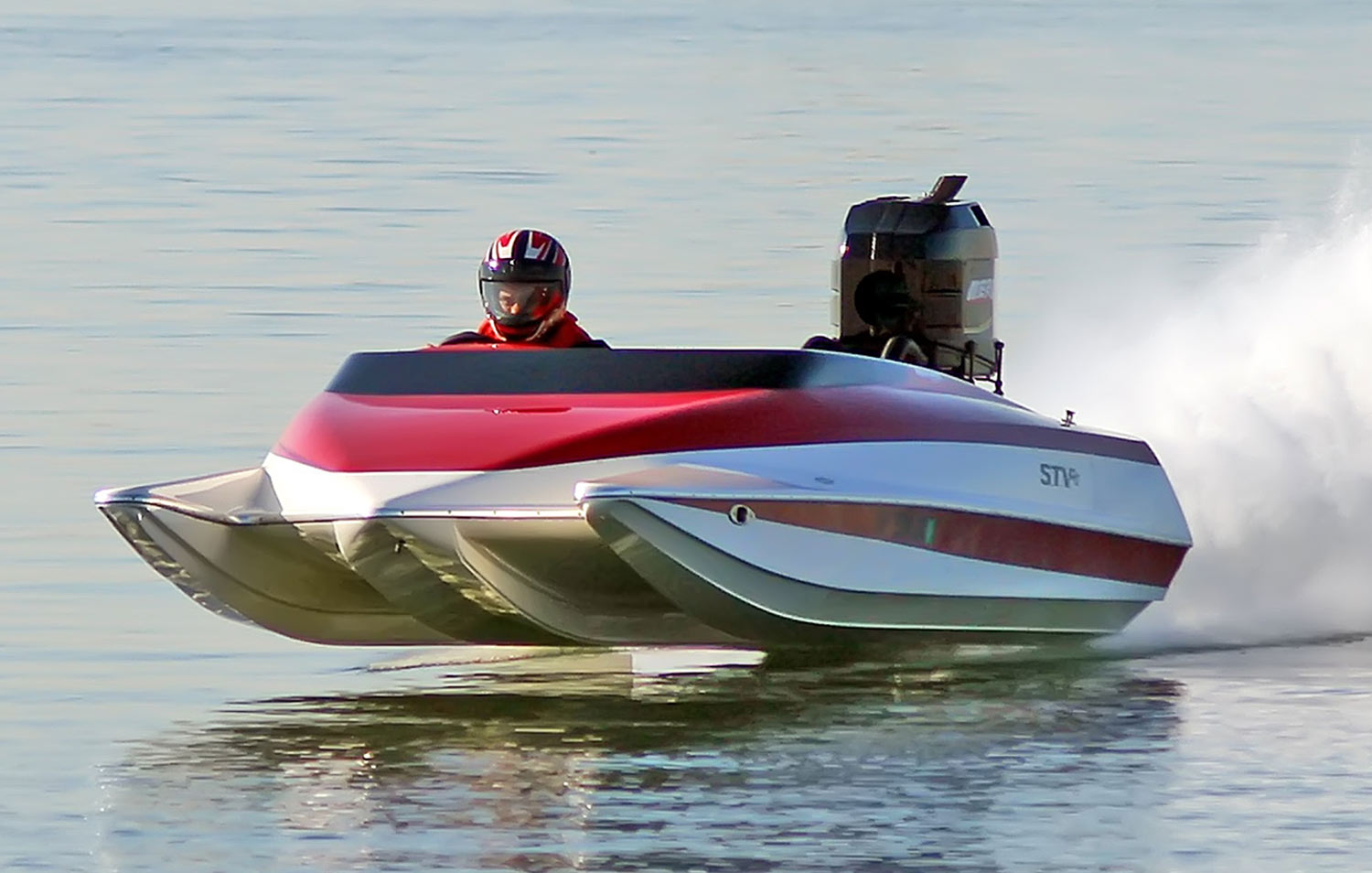

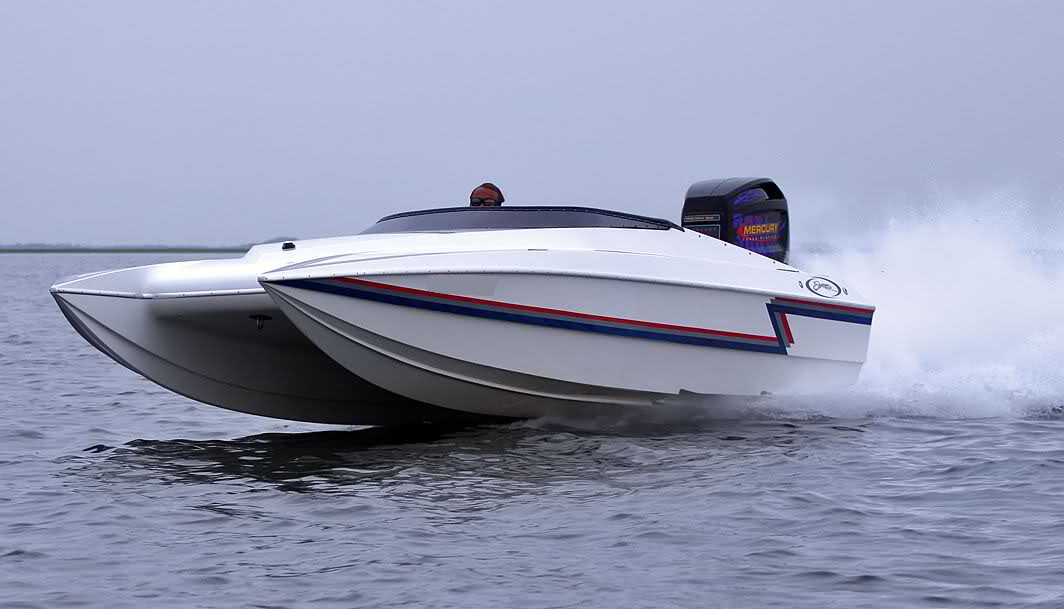

 Recreational Tunnel O/B |
 Vee Hull with Pad |

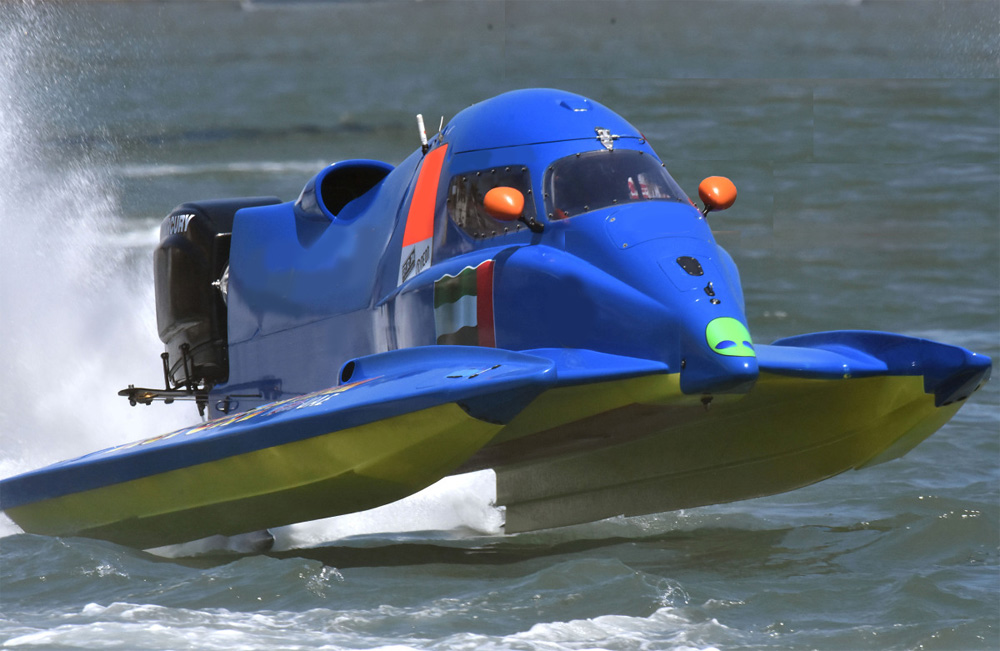

 F1 Racing Tunnel |
 Vee Hull Sterndrive |

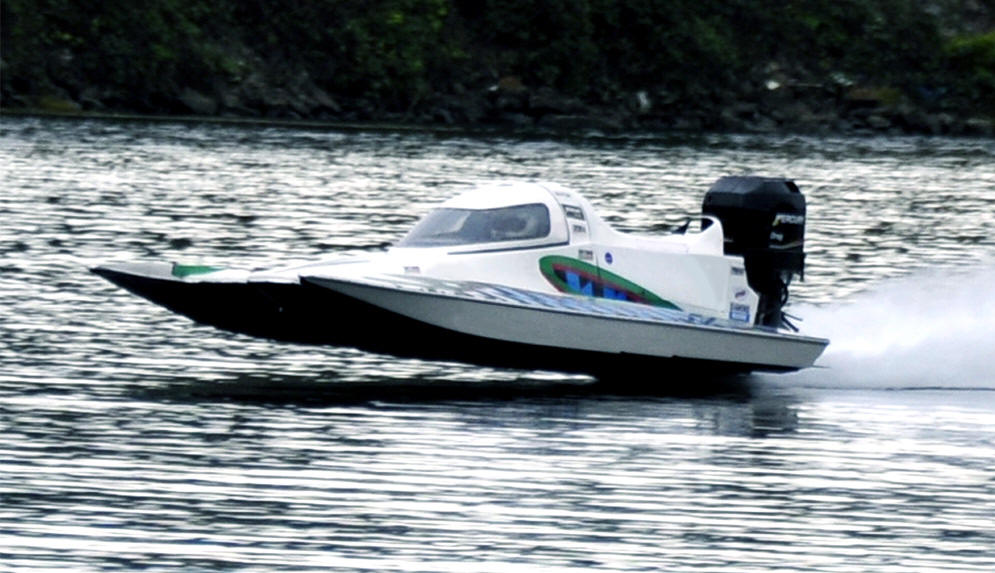

 Mod VP Drag Racer |

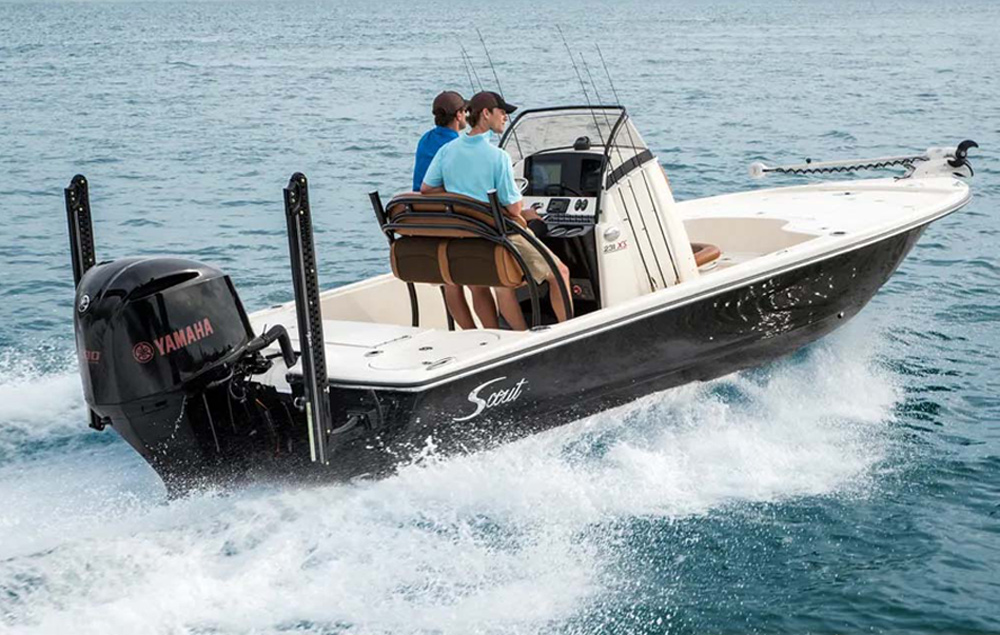

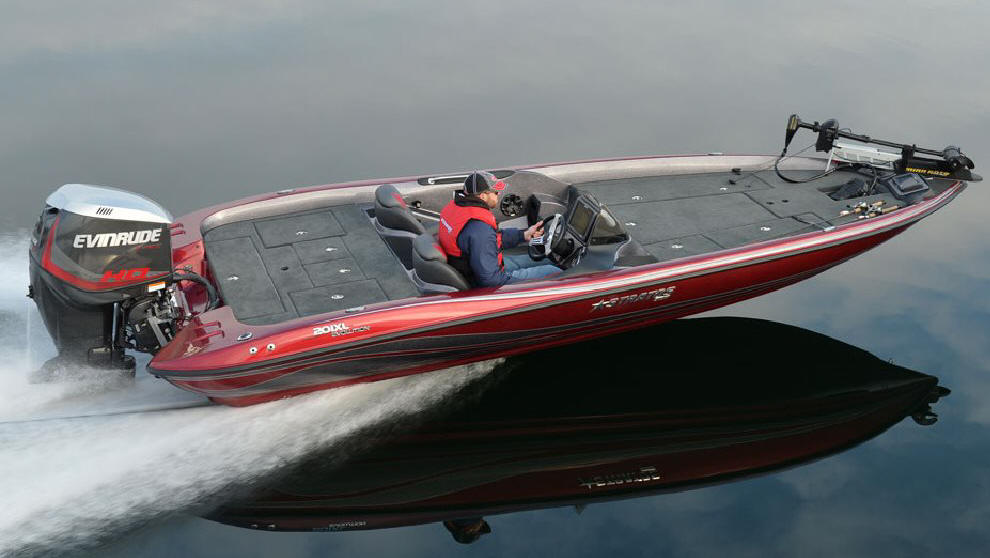

 Bass Boat w/Center Console |

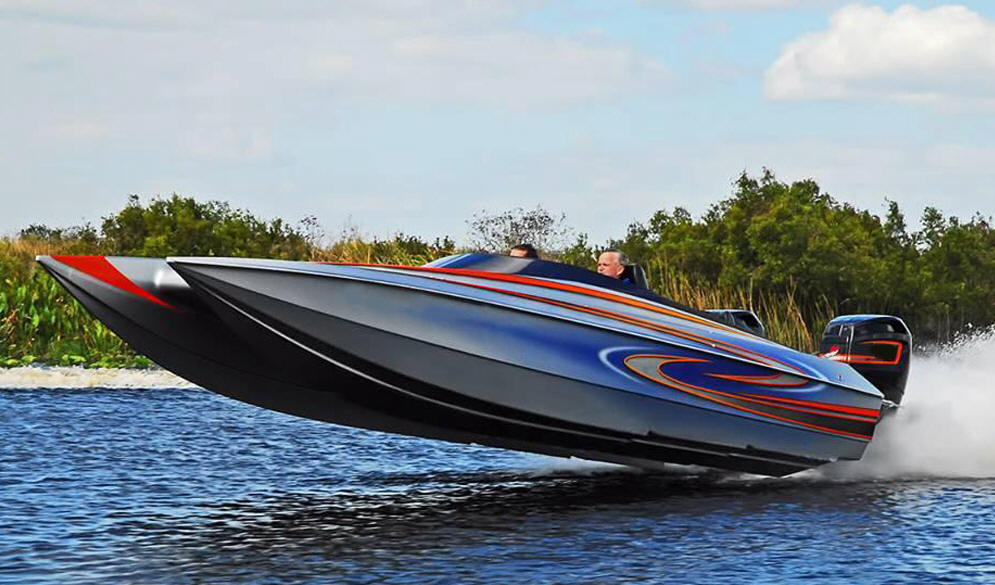

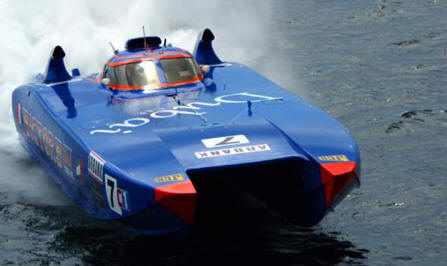

 Offshore Racing Cat |
 Vee Hull with no pad |

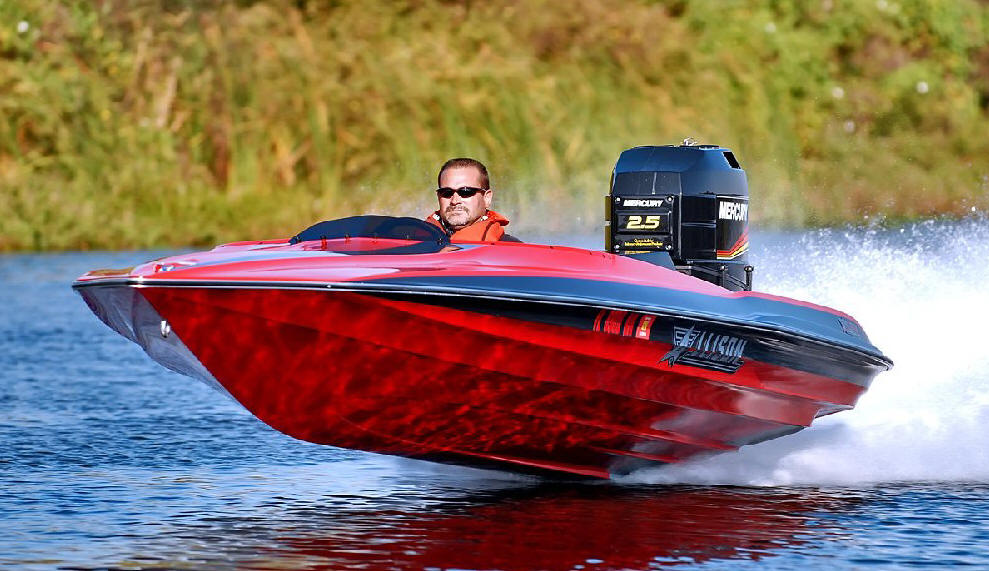

 Recreational Perf Mod Tunnel Vee |

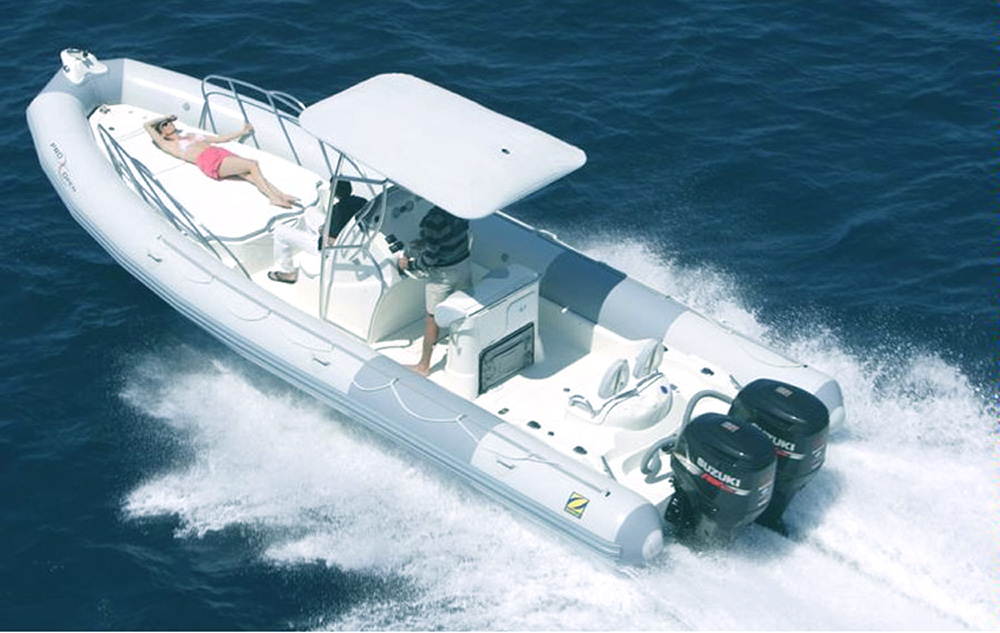

 RIB Vee O/B |

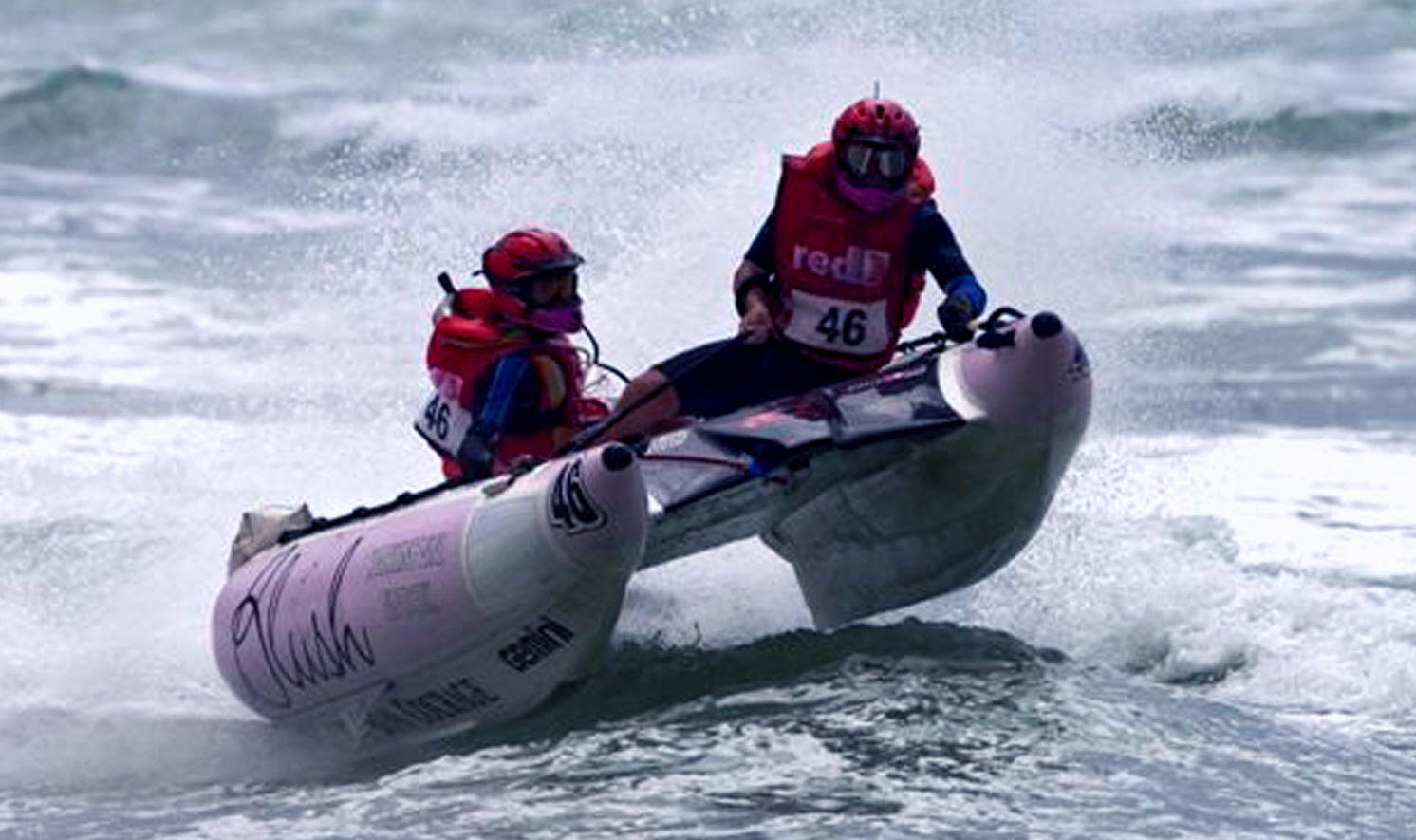

 ZapCat Inflatable |
 Skater 24' O/B |
 RC Tunnel |
 Vee Hull Utility Bay |

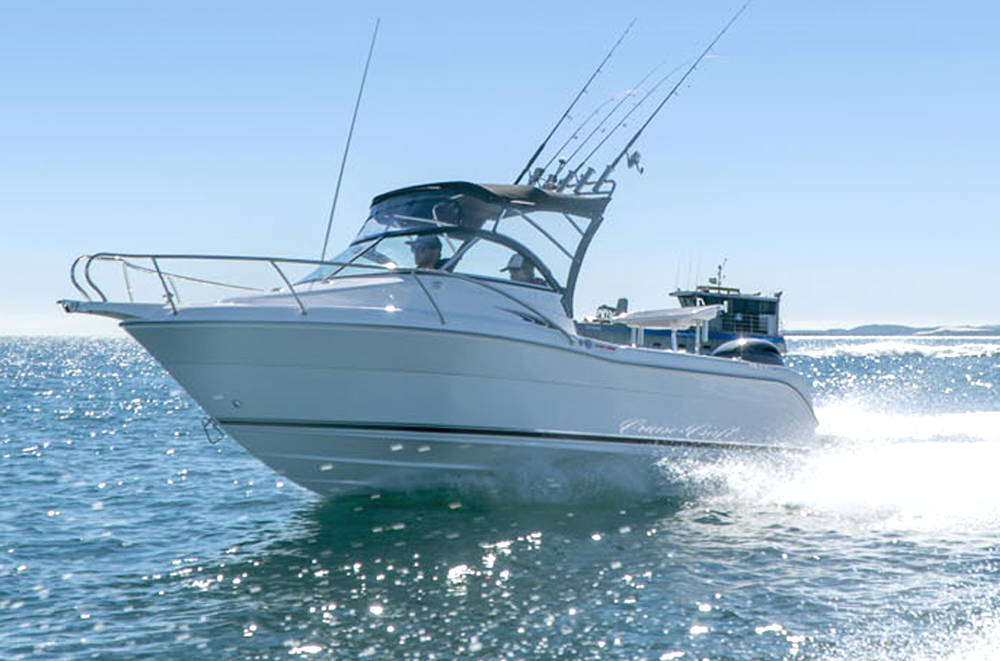

 Fishing Vee w/ Cuddy Cabin |

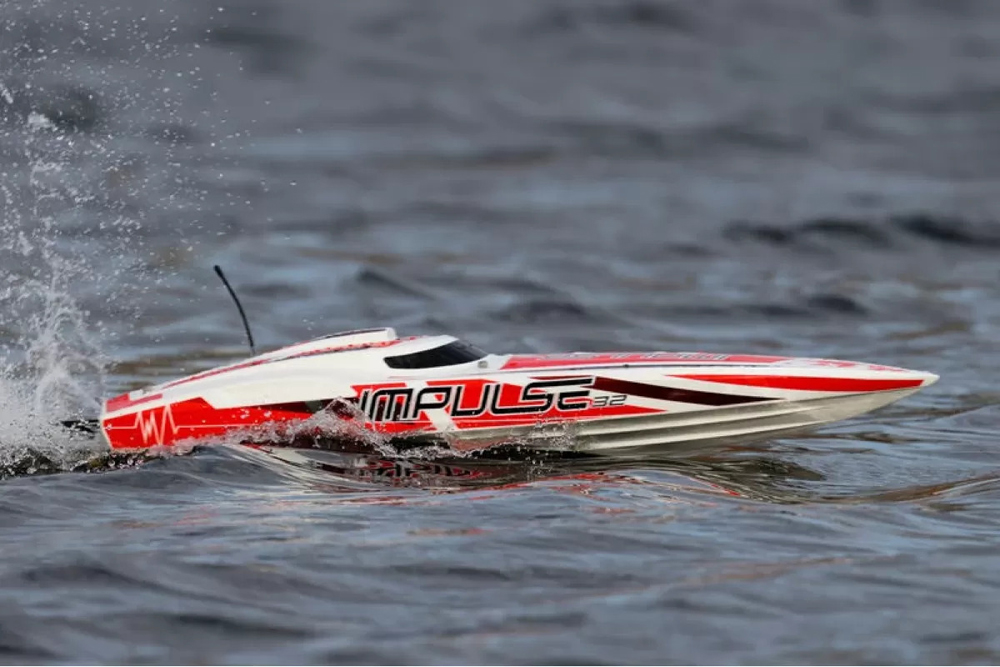

 RC Vee Sterndrive |
 Bowrider sterndrive |

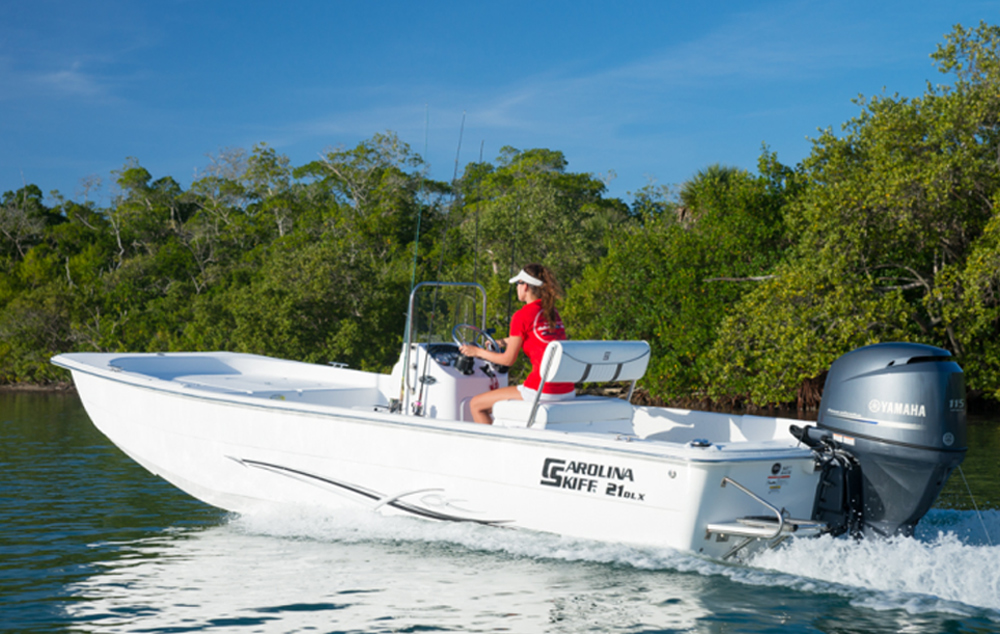

 Flat Bottom Skiff |
